OPTOStokes BP465-1.0mm Bandpass Filter | CWL 465nm±2nm, FWHM 30±2nm, 1.0mm Thickness
OPTOStokes BP465nm bandpass filters are precision-engineered optical components designed to meet the rigorous demands of photonics R&D, industrial testing, and analytical instrumentation. With high average transmission (>90%) across the target wavelength range and superior blocking performance, this 1.0mm thick filter combines reliability and accuracy – available in stock for immediate procurement or fully customizable to your unique requirements.
Technical Specifications
| Parameter | Specification |
|---|---|

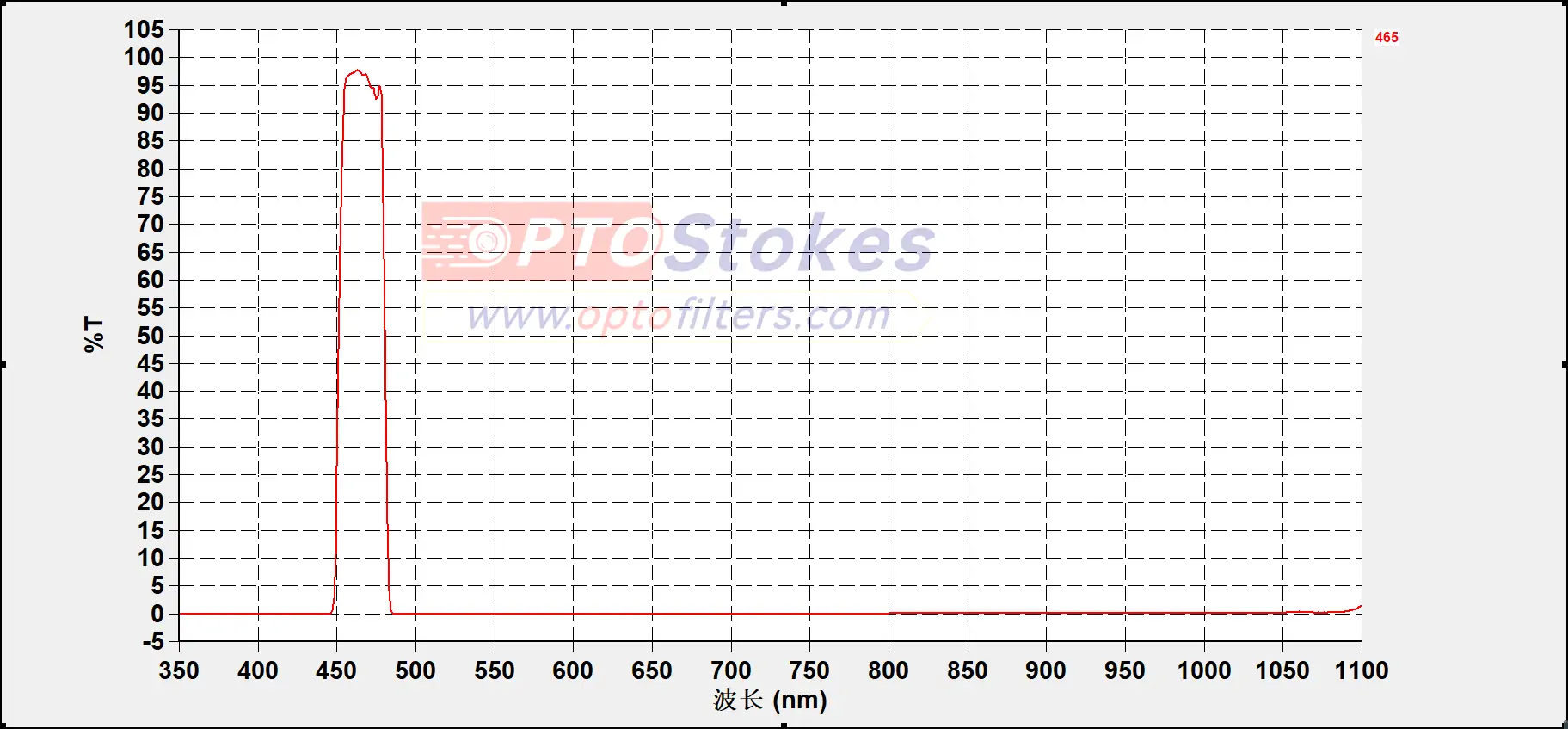

| Transmission | 455-475nm @ Average Transmission > 90% |
| Central Wavelength (CWL) | 465nm ± 2nm |
| Full Width at Half Maximum (FWHM) | 30nm ± 2nm |

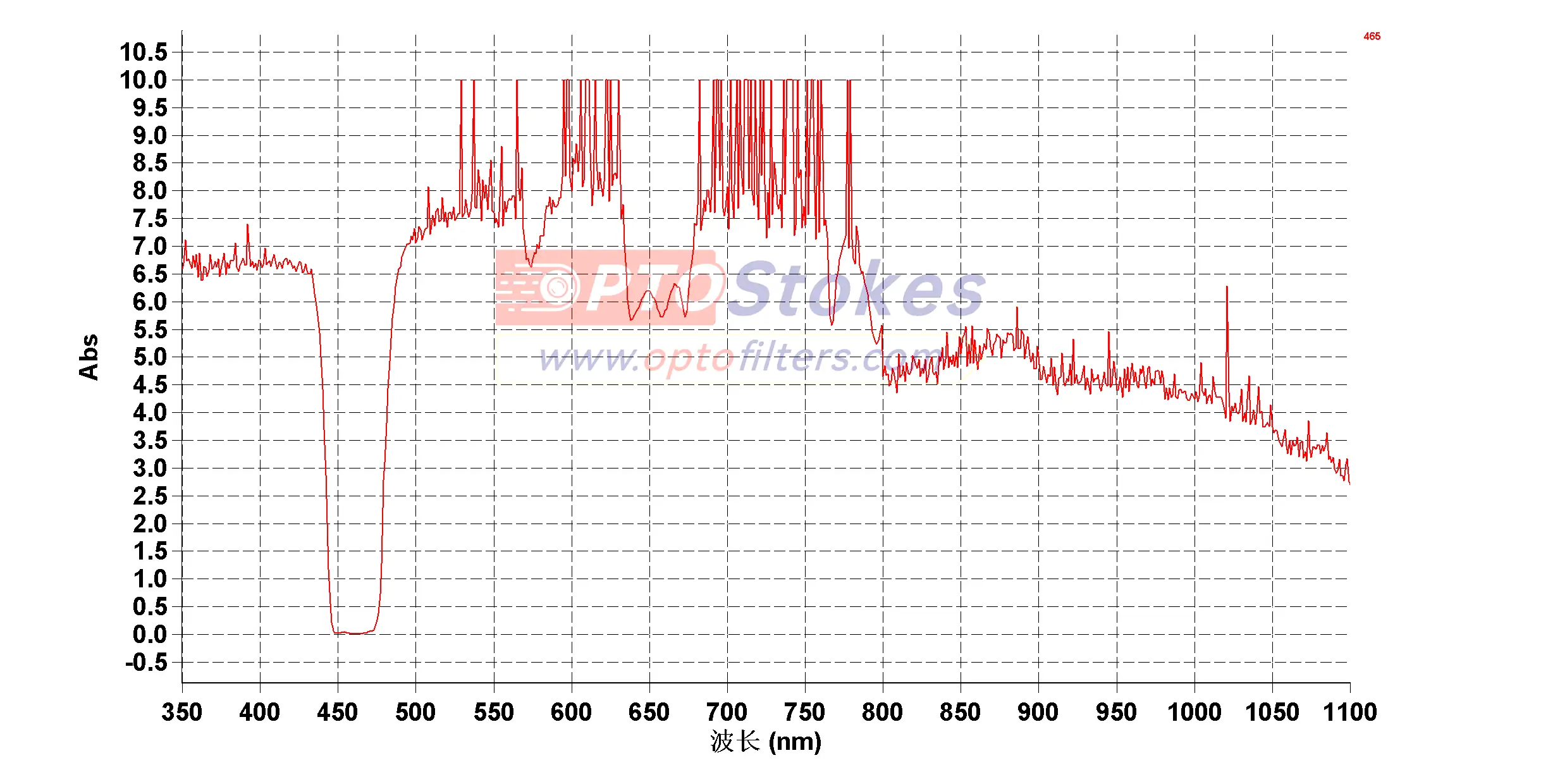

| Blocking Range & Optical Density (OD) | 350-440nm @ OD > 5; 490-800nm @ OD > 5; 800-1050nm @ OD > 3 |
| Angle of Incidence (AOI) | 0 degree |
| Scratch-Dig | 60/40 |
| Thickness | 1.0mm |
Applications
The BP465nm bandpass filter is ideal for a range of high-precision optical applications, including fluorescence imaging systems, biomedical diagnostic equipment, PCR detection instruments, optical spectroscopy, and industrial photonics testing. Its tight wavelength tolerance and high blocking efficiency make it suitable for R&D labs and production environments requiring consistent optical performance.
Customization & Service
OPTOStokes offers flexible customization options for the BP465nm bandpass filter to match your exact application needs. We can fabricate filters in square, round, or custom irregular shapes, with optional mounting ring assemblies for easy integration into your optical systems. As a provider of world-class optical components, we maintain an extensive in-stock selection for rapid delivery, while our high-level customization support ensures even the most specialized requirements are met – all with reliable lead times and guaranteed quality.
Pain Points & Contact Us
We understand that R&D engineers and purchasing managers often face challenges like extended lead times for custom optical filters, limited technical support, or inconsistent quality from suppliers. At OPTOStokes, we address these pain points by combining in-stock availability for fast turnaround, expert technical guidance, and fully customizable solutions without compromising on quality. To discuss your BP465nm filter requirements, request a quote, or learn more about our optical component capabilities, please contact our team at [email protected] or submit an inquiry through our website.
